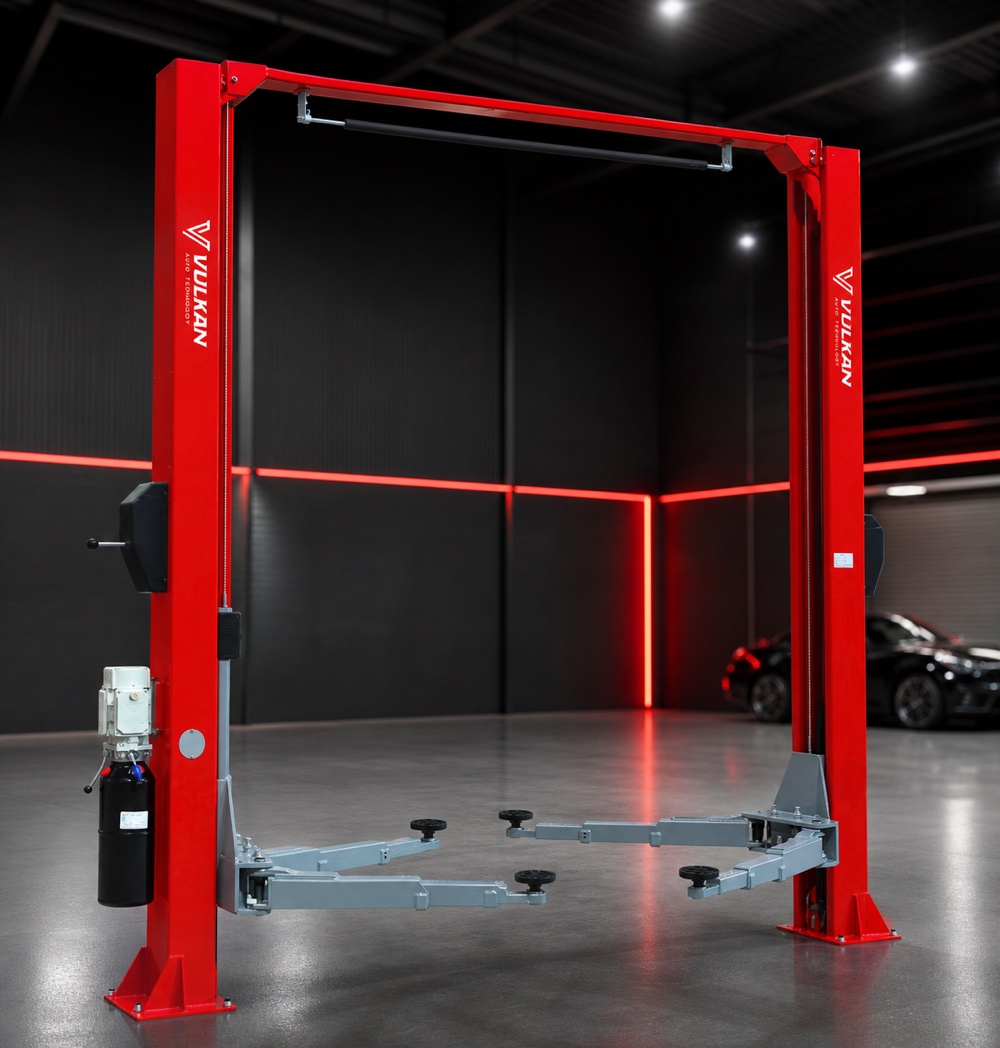

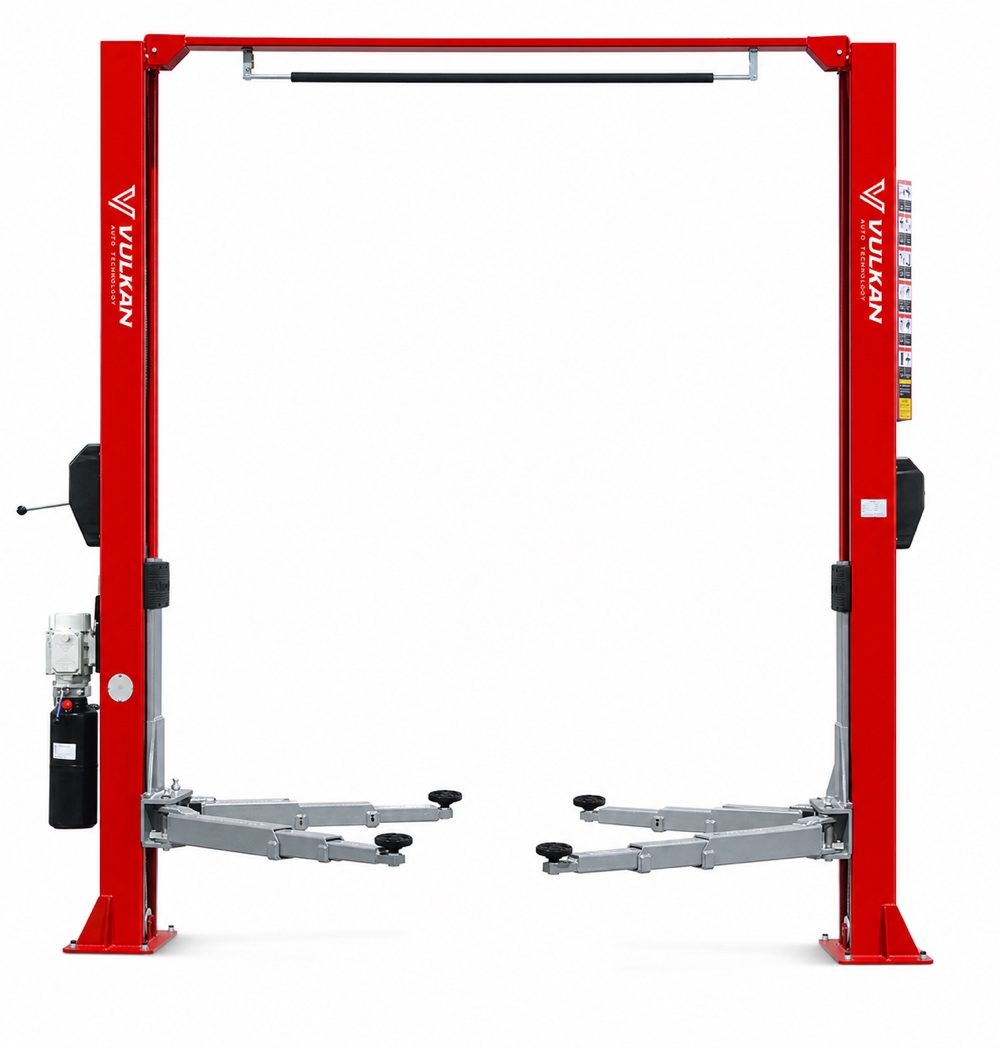

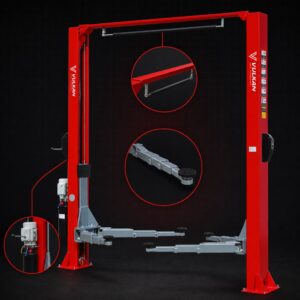

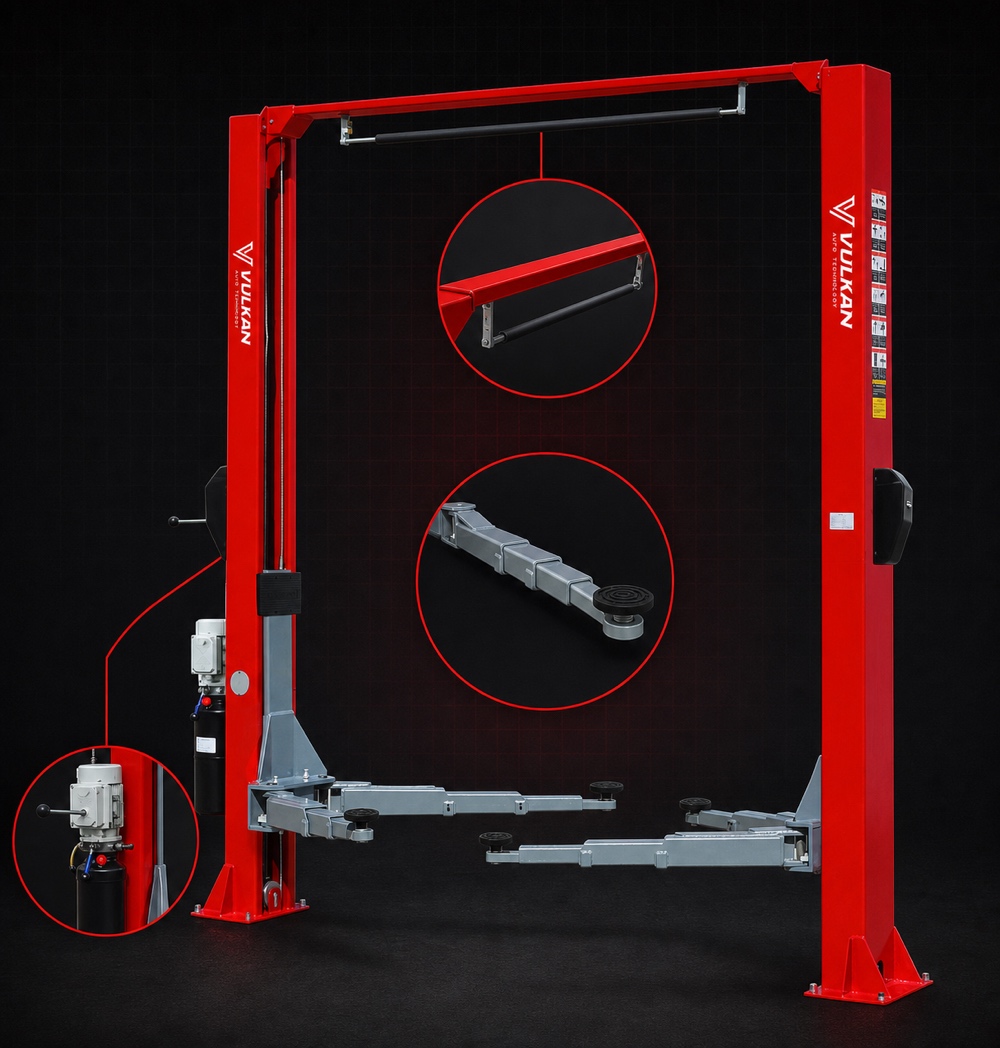

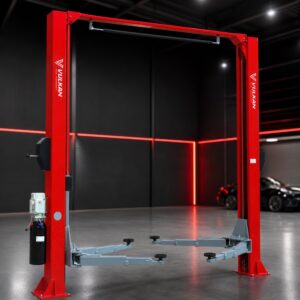

The Vulkan Two-Post Lift VL-866 combines a one-piece bent-steel carriage with two-section front arms and three-section rear arms for different wheelbases. Its imported oil-seal ring, anti-explosion oil pipe, mechanical locks, self-locking arms, and CE-standard structure support the tyre, chassis, oil-change, and inspection uses identified in the manual. The lift is configured around the published capacity, height, clearance, pressure, motor, voltage, passway, and net-weight specifications.
KEY FEATURES
- One-piece bent-steel carriage
- Structural stiffening plate
- Two-section front lifting arms
- Three-section rear lifting arms
- Support for different vehicle wheelbases
- Imported oil-seal ring
- Anti-explosion oil pipe
- Mechanical locking system
- Self-locking arms
- Structure described as complying with the CE standard
- Lifting height up to 1,900 mm
- 2,500 mm drive-through clearance
- Suitable for tyre, chassis, oil-change, and inspection work
- 4.5-tonne lifting capacity
- 2.2 kW motor with 380/220 V supply
- Lifting Capacity: 4.5 tonnes
- Lifting Height: 1,900 mm
- System Pressure: 16 MPa
- Motor Power: 2.2 kW
- Voltage: 380/220 V
- Passway Range: 2,500-2,800 mm
- Drive-Through Clearance: 2,500 mm
- Minimum Height: 110 mm
- Release Configurations: Manual and electrical
