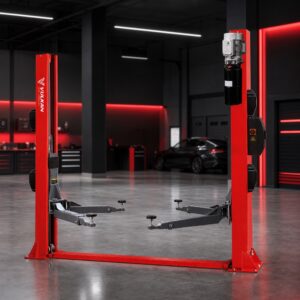

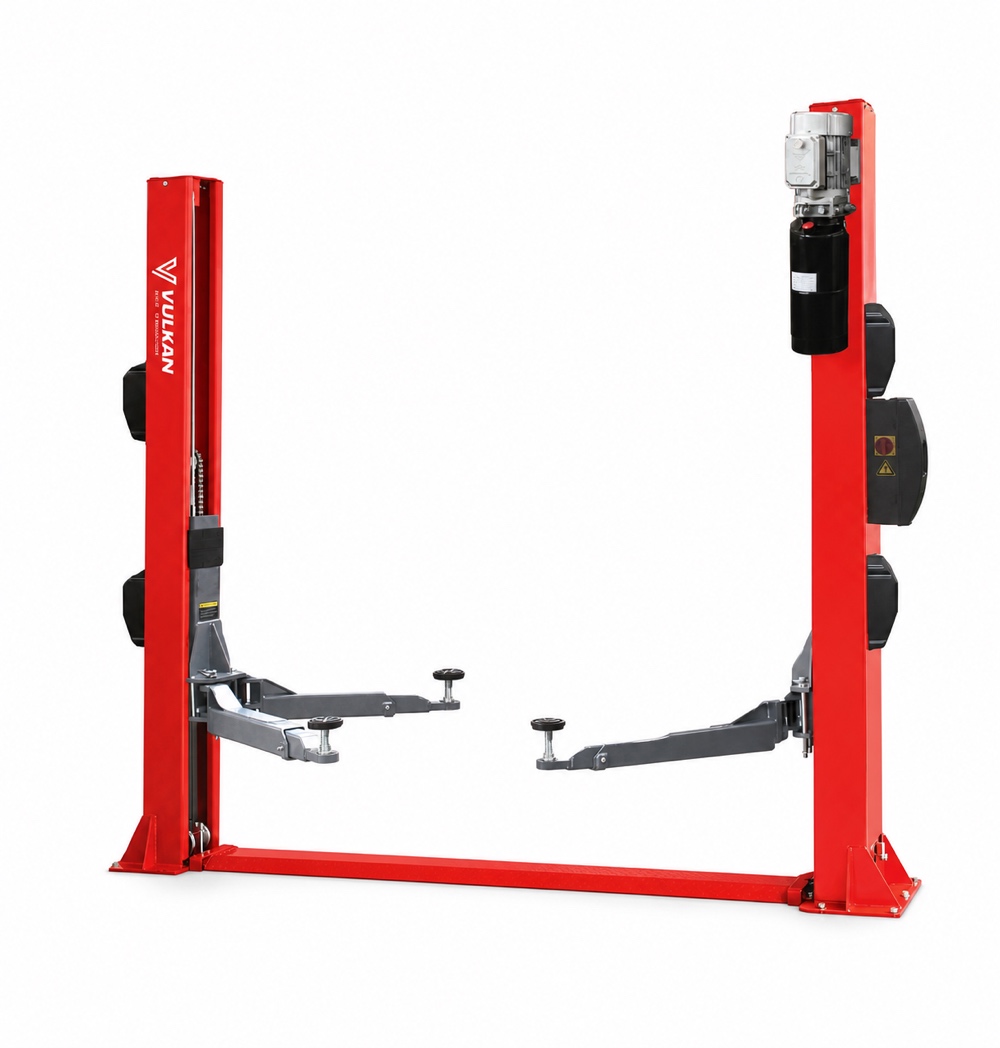

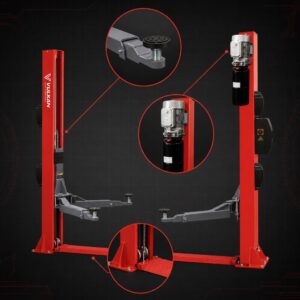

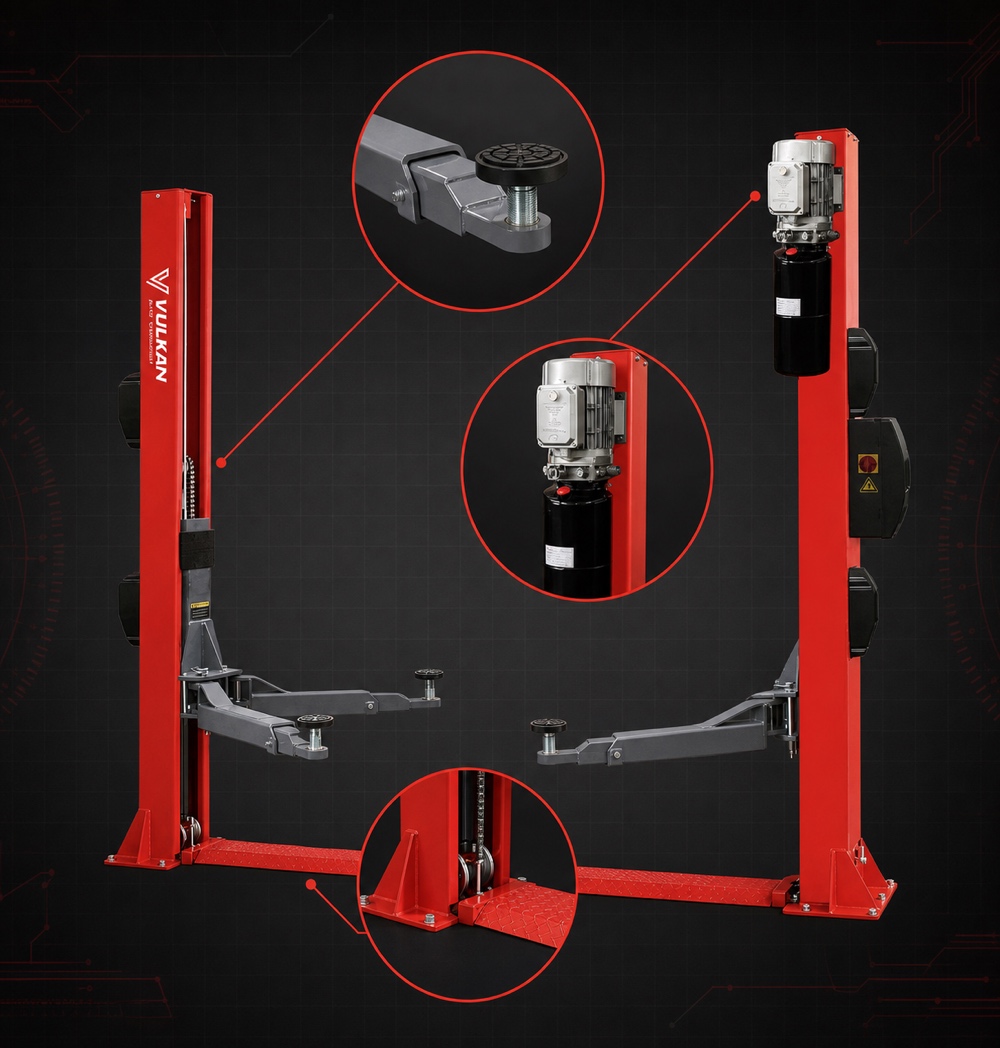

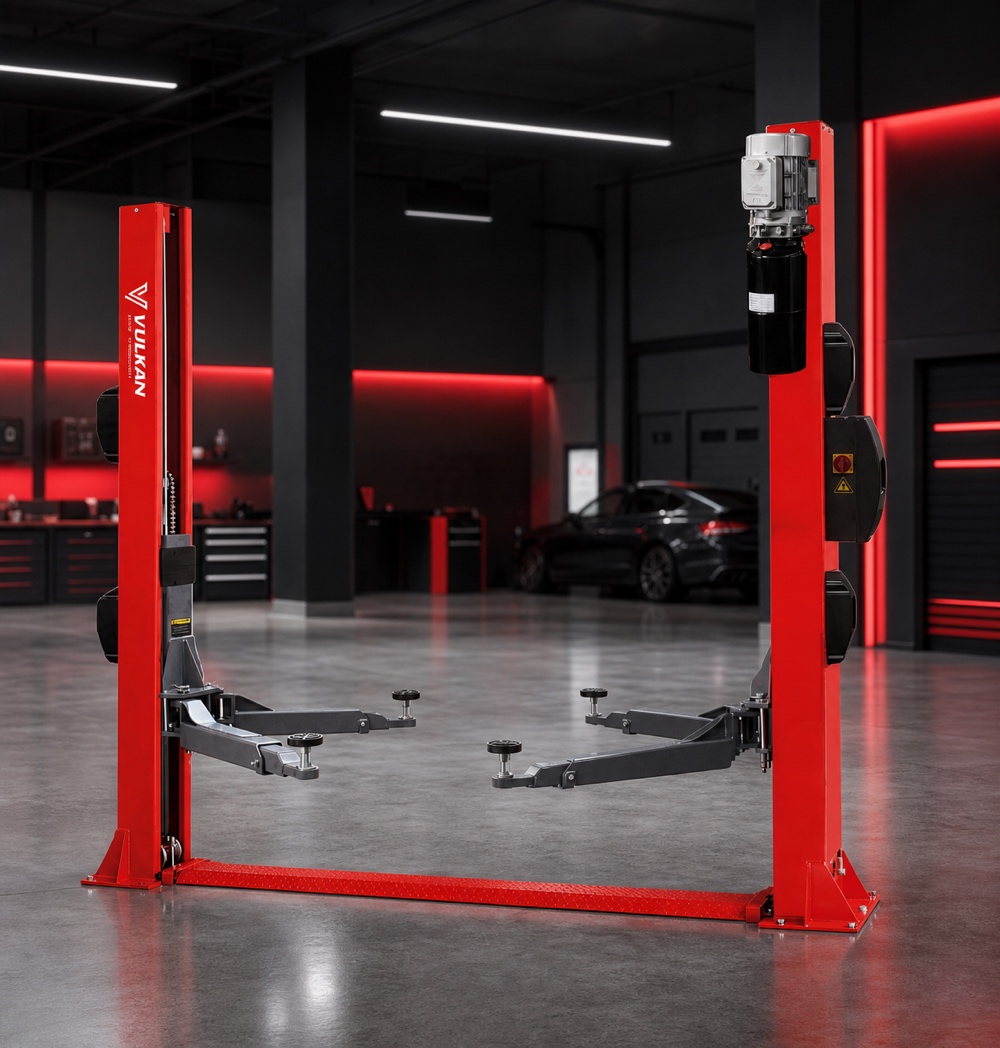

Vulkan Two-Post Lift VL-886
Vulkan Two-Post Lift VL-886
Vulkan Two-Post Lift VL-886

Vulkan Two-Post Lift VL-886

Original price was: $7,499.00.Current price is: $6,999.00.

The Vulkan Two-Post Lift VL-886 uses a one-piece bent-steel carriage with a structural stiffening plate. Its two-section arms use short front sections and long rear sections for different wheelbases. An imported oil-seal ring supports the hydraulic system, while the safety package includes oil-pipe protection, an explosion-proof valve, mechanical locks, and arm self-help locks. The structure is described as meeting the CE standard.

The lift provides up to 1,800 mm lifting height and 2,500 mm drive-through clearance, and the manual identifies it for tyre mounting, chassis repair, oil changes, vehicle inspection, repair shops, and service stations. The product family includes 3.5- and 4.0-tonne capacities, 20 MPa pressure, 2.2 kW motor, and 380/220 V supply. Net weights are 570 and 600 kg; the WooCommerce field uses the highest listed figure.

- +
SKU: VL-886 Category: Brand:

Description

The Vulkan Two-Post Lift VL-886 combines a one-piece bent-steel carriage with two-section arms configured for different wheelbases. Its imported oil-seal ring, oil-pipe protection, explosion-proof valve, mechanical locks, arm self-help locks, and CE-standard structure support the service uses identified in the manual. The product family includes 3.5- and 4.0-tonne configurations with published lifting-height, clearance, pressure, motor, voltage, minimum-height, and net-weight figures.

KEY FEATURES

  • One-piece bent-steel carriage
  • Structural stiffening plate
  • Two-section lifting arms
  • Short front and long rear arm configuration
  • Support for different vehicle wheelbases
  • Imported oil-seal ring
  • Oil-pipe protection and explosion-proof valve
  • Mechanical locking system
  • Arm self-help locks
  • Structure described as meeting the CE standard
  • Lifting height up to 1,800 mm
  • 2,500 mm drive-through clearance
  • Suitable for tyre, chassis, oil-change, and inspection work
  • Manual-listed 3.5- and 4.0-tonne capacities
  • 2.2 kW motor with 380/220 V supply
  • Lifting Capacity Options: 3.5 and 4.0 tonnes
  • Lifting Height: Up to 1,800 mm
  • System Pressure: 20 MPa
  • Motor Power: 2.2 kW
  • Voltage: 380/220 V
  • Tray Minimum Height: 100 mm
  • Passway Space: 2,500 mm

Additional information

Weight600 kg
Dimensions162 × 36 × 34 cm

Technical Specifications

The Vulkan Two-Post Lift VL-886 technical data below reflects the official specifications published in the Vulkan product manual.

  1. Lifting Capacity Options: 3.5 and 4.0 tonnes
  2. Lifting Height: Up to 1,800 mm
  3. System Pressure: 20 MPa
  4. Motor Power: 2.2 kW
  5. Voltage: 380/220 V
  6. Tray Minimum Height: 100 mm
  7. Passway Space: 2,500 mm
  8. Official Net Weight Options: 570 and 600 kg
  9. WooCommerce Weight Uses Highest Listed Net Weight: 600 kg
  10. Gross Weight: Not provided in the manual
